ISR 73-100 Series Integrated Switch Clamps for ISR Master Cylinders

$69.95

ISR 73-100 Series Integrated Switch Clamps for ISR Master Cylinders

$69.95
SKU:
PB-73100XX
Weight:
0.50 LBS
Shipping:
Calculated at checkout
Share

Product Description

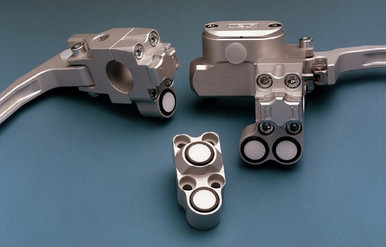

ISR Brakes from Sweden are very high quality and rugged systems designed for top bike builders and customizers who demand the best performance and durability from their brake systems.  The integrated switch pack clamps are a great solution for custom bike builders looking to integrate a clean look with high performance brakes.  Machined passageways in the back of the switch allow for internal wire routing to provide an extremely clean and durable look.  They incorporate push and/or slide style buttons into matching clamps that bolt directly to ISR master cylinders for an exact match.  Available for 22mm (7/8") and 25mm (1") handlebars they come in 20 different possible combinations.  Also available are switch clamps with white buttons and rockers, see the 73-200 series of ISR switch clamps.  See the chart below and select your number above.


The ISR 73-100 series of switch clamps feature momentary actuation push buttons and maintained operation for the slide switches.  The slide switches are only available in two position and either plain or with "O" for off and "I" to represent on (pictured), push buttons are available with no markings only.  In addition custom markings are available for the aluminum slides, they can be engraved onto the slide for minimal extra cost.  Please inquire for more info on this option.


The electrical characteristics are
6A for the slide buttons and 25mA for the push buttons.  The push buttons are typically routed to a relay for greater capacity when using for higher amperage draws such as horns.  Clamps marked as RH or LH will fit either the right hand or left hand sides and are reversible.  Clamps marked only RH or only LH or only for that particular side of the bike.

Clamps labeled RH or LH are mountable on either the right hand or left hand sides without any additional parts. - See more at: http://power-barn.com/servlet/the-1985/ISR-73-dsh-200-Series-Integrated/Detail#sthash.WQgpec1P.dpuf
Clamps labeled RH or LH are mountable on either the right hand or left hand sides without any additional parts. - See more at: http://power-barn.com/servlet/the-1985/ISR-73-dsh-200-Series-Integrated/Detail#sthash.WQgpec1P.dpuf
  • 73-101-OA (One slide - two push buttons) RH, 25.4mm (1")
  • 73-101-OB (One slide - two push buttons) LH, 25.4mm (1")
  • 73-102-OA (One slide - one push button) RH or LH, 25.4mm (1")
  • 73-103-OA (Two push buttons only) RH or LH, 25.4mm (1")
  • 73-104-OA (One slide button only) RH or LH, 25.4mm (1")
  • 73-105-OA (One push button only) RH or LH, 25.4mm (1")



  • 73-106-OA (One slide - two push buttons) RH, 22mm (7/8")
  • 73-106-OB (One slide - two push buttons) LH, 22mm (7/8")
  • 73-107-OA (One slide - one push button) RH or LH, 22mm (7/8")
  • 73-108-OA (Two push buttons only) RH or LH, 22mm (7/8")
  • 73-109-OA (One slide button only) RH or LH, 22mm (7/8")
  • 73-110-OA (One push button only) RH or LH, 22mm (7/8")


Please inquire for custom engraving options.
