1961-1968 CL72, CB72, CL77, CB77 Tune Up Kit By Cycletune
Product Description
This is a genuine Cycletune tune up kit for ALL 1961-1968 Honda CB72 Hawk 250, CL72 Scrambler 250, CB77 Super Hawk 305, and CL77 Scrambler 305 twins. The kit consists of the right side contact points, left side contact points, condenser, and two NGK D8HA spark plugs.

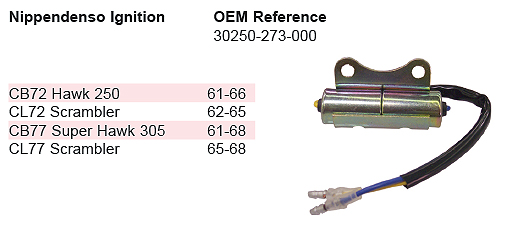

The older style Honda OEM condensers for these applications are no longer available, 30250-268-024, 30250-268-014, and 30250-268-004. The condenser in this kit is a suitable replacement with two .25 micro-fared condensers inside a single package. If you have two sets of points then you will connect two of the wires from the coil directly to the points. The other two wires from the coil will be routed to the new condenser. The wires should just plug in, worse case you may need to splice some wires together. The condenser will then be grounded through the body, a clean mounting location is required to complete the circuit.
The original two condensers each had two wires, one for ground and one to the coil. The replacement condenser will ground through the body when bolted to the frame or engine. The other two wires from the replacement condenser will each connect to the coils, one to the left side and one to the right side.
Tune up kits contain only high quality electrical components that are made by the same Japanese OEM's who make them for Honda. All tune up kits are guaranteed and ship FREE! The kit consists of the following items:
- Right side contact points, Honda OEM #30203-268-004
- Left side contact points, Honda OEM #30204-268-004
- Condenser, Honda OEM #30250-273-000
- Two NGK D8HA spark plugs
