ISR 71-004 Universal Cable Clutch Adjustable Replacement Lever
$109.95
)
Product Description

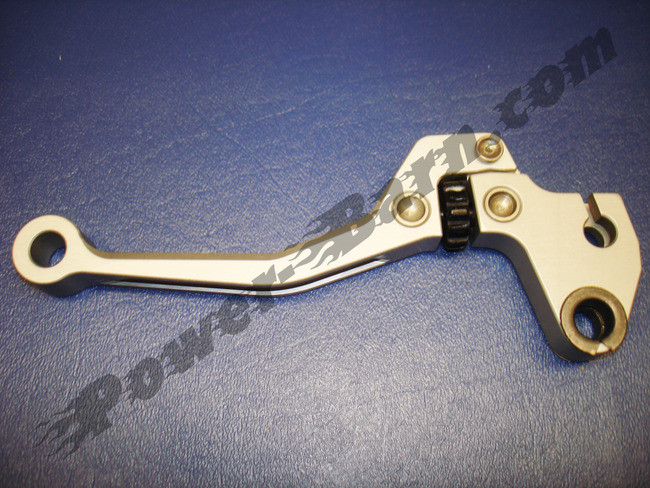

ISR Brakes from Sweden are very high quality and rugged systems designed for top racers who demand the best performance and durability from their brake systems. The cable clutch replacement lever for universal cable clutch applications is a top quality lever set CNC machined from billet aluminum. The lever assembly tolerances are tight providing a smooth slack free actuation. This is the adjustable lever fitting the ISR 71-004 universal assemblies, see the non-adjustable lever version for the non-adjusting option.
The 71-004 series of ISR cable clutch lever assemblies have the following specifications:
PDF Downloads
The 71-004 series of ISR cable clutch lever assemblies have the following specifications:
- Maximum cable size is 3.5mm, other cable diameters available as custom
- Cable fitting diameter is 8.75mm, other cable fitting diameters available as custom
- Distance from cable pivot to lever pivot is 34mm
- 0.25kg (.55lbs) weight
- 22mm (7/8") handlebar size
- Clear anodized
