ISR Brakes from Sweden are very high quality and rugged systems designed for top racers who demand the best performance and durability from their brake systems.  The cable lever assembly for universal applications is a top quality lever set CNC machined from billet aluminum.  The lever assembly tolerances are tight providing a smooth slack free actuation.  Available with or without adjustable reach lever.  Fits 7/8" (22mm) handlebars.

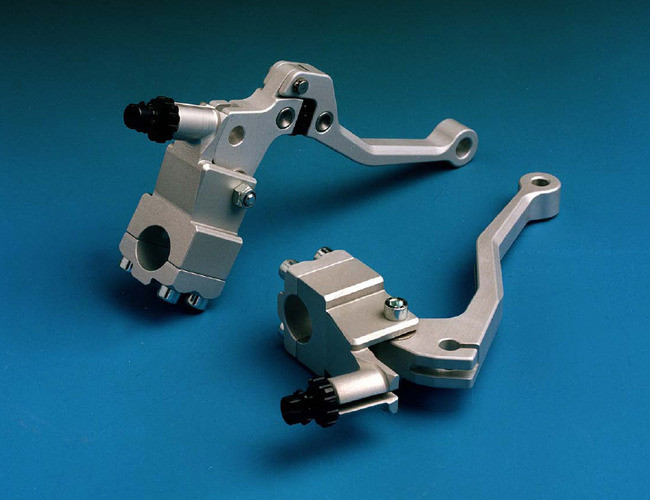

The 71-004 universal cable lever assemblies are perfect for Japanese and European motorcycles with 22mm (7/8") handlebars.  They will work for either the brake or clutch side.  The design employs radiused edges in a sharp style that perfectly match the brake side master cylinders.  Switchpack housings can be purchased separately to integrate handlebar controls directly into the master cylinder clamps producing a clean and uncluttered handlebar.  Also available are adjustable reach levers allowing the rider to painlessly adjust the distance of the lever from the handlebar.  Please Note: The 71-004 series cable assemblies come standard with a non-adjustable reach lever.  The adjustable reach lever shown in the product photos is optional and must be added.


The 71-004 series of ISR cable lever assemblies have the following specifications:

• Use for clutch or brake control
• Reversable for clutch (LH) or brake (RH) operation
• Maximum cable size is 3.5mm, other cable diameters available as custom

• Cable fitting diameter is 8.75mm, other cable fitting diameters available as custom

• Distance from cable pivot to lever pivot is 34mm

• 0.25kg (.55lbs) weight
• 22mm (7/8") handlebar size
• Clear anodized


PDF Downloads

ISR 71-004 catalog pages

ISR 21-137 adjustable lever catalog pages
