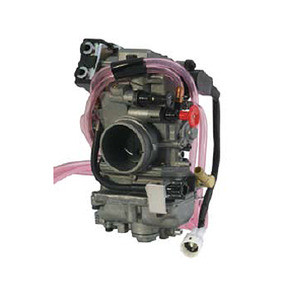

Keihin carburetors have long been considered some of the finest carburetors in the world. Now, Keihin has developed an FCR carburetor for the ultimate off road performance upgrade. The FCR-MX carburetor has been specially designed with the needs of the off road rider in mind. Following are some of the new features that take motocross and ATV performance to the next level:
- Over-flow drain and joint tube
- Throttle cable enclosure
- High capacity float chamber
- Float chamber baffle for rough terrain
- Quad float bowl vents
- Optional hot re-start circuit
- Optional air cut-off valve
- Optional TPS sensor
- All carbs include choke circuit
This Keihin FCR-MX carburetor kit will give you the most out of your 2000-2013 Suzuki DRZ400S/SM/E motorcycle. Both FCR-MX39 and FCR-MX41 kits are available. The 39's provide a slightly higher intake velocity and produces more torque and mid-range, they will work well for stock to modified engines. The 41's will flow better at higher RPM's and thus produce a little more HP at the sacrifice of some torque down low, they will work well with over-bored or highly modified engines.
This custom kit includes everything needed for a simple bolt on installation:
- Keihin FCR-MX pre-jetted carburetor with choke circuit, TPS sensor, air cut-off valve, and hot start circuit
- Intake manifold with clamp
- Keihin airbox adapter, 2 3/8"
- Airbox adapter o-ring
- Airbox adapter mounting hardware
- Vacuum Nipple with gasket to retain the OEM vacuum operated petcock fuel valve
- Keihin EMN needle for tuning
- 4 Keihin main jets for tuning
- 2 Keihin pilot jets for tuning
- Uses OEM throttle cables!
- Complete detailed installation instructions with photographs
- Detailed customer and product support from installation to tuning
- Extra horsepower is always included!
NO ONE SUPPLIES A MORE COMPLETE KIT...NO ONE!
This Keihin FCR-MX carburetor is equipped with a throttle position sensor, hot-start, and air cut-off circuits. The hot-start allows fresh air to rush in for hot starting or flooded situations. The air cut-off circuit briefly enrichens the fuel mixture on deceleration to help prevent backfiring and popping. The carburetor delivers exceptional throttle response with superb horsepower levels. This kit can really extended the capabilities of your DRZ400 and can increase horsepower by as much as 20% with the proper modifications. Even with a completely stock motorcycle this kit will really unleash the hidden performance of your DRZ400.
Tuning and performance specs have been developed over the years to suit a wide variety of conditions, however some fine tuning may be required to attain the desired combination of performance, fuel mileage, and drivability. Extra main jets are included for fine tuning and additional genuine Keihin parts and accessories are always available at low prices. This kit will work with the OEM throttle cables and replacement cables are also available. Alternatively these kits can be built to your own jetting specifications. Please ask us how.
Throttle Cable Note: This FCR-MX carburetor kit will work with the OEM cables, there is no need to purchase extra cables. However, some feel that the cables are fairly tight and the end fittings are not bent properly. We now offer custom cables specifically for this application with different cable ends and lengths. Please select this option above.
It has come to our attention that some "other" retailers are selling these kits incomplete. They don't include all the necessary items for a successful installation and that forces you to buy more items, possibly at a higher cost. These kits from The Power-Barn are 100% COMPLETE, you will need nothing else for installation.
Please feel free to contact us with any additional questions or requests, we are available by direct line, IM, or email. We are available for tuning and setup questions as well as continuing product support after the sale.
