Triumph Flange Mount Intake Manifold Kit for Amal or Mikuni VM Dual
Triumph Flange Mount Intake Manifold Kit for Amal or Mikuni VM Dual
)
Product Description

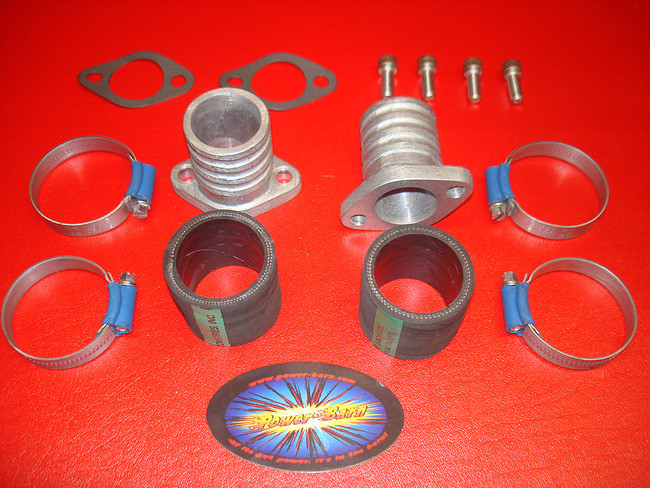

These high quality intake manifolds for the Triumph Bonneville's from mid 1972-1978 allows fitment of either the Amal or Mikuni VM carburetors. The manifolds are two flange mount cast aluminum manifolds with 50mm bolt centers for mounting. The manifold kit includes gaskets, mounting hardware, two flange mount manifolds, two rubber hose adapters, and four clamps. Manifold kit fits mid 1972-1978 Triumph Bonneville's with flange mount style manifolds. Rubber hose adapters are also available separately.
Intake manifolds have a 40mm OD x 32.5mm ID at the carb end. It tapers down to approximately 31mm at the cylinder head side. Overall length is 55mm. The bolt centers are 50mm and the flange thickness is 10mm. The flange mounting bolt diameters are 8mm. Rubber hose adapters are approximately 43-44mm in length and 5mm thick.
Intake manifolds have a 40mm OD x 32.5mm ID at the carb end. It tapers down to approximately 31mm at the cylinder head side. Overall length is 55mm. The bolt centers are 50mm and the flange thickness is 10mm. The flange mounting bolt diameters are 8mm. Rubber hose adapters are approximately 43-44mm in length and 5mm thick.
