Dyna Ignition Coils

$164.75 $139.95
(You save $24.80)

Dyna Ignition Coils

$164.75 $139.95
(You save $24.80)
SKU:
PB-61875X
Weight:
2.00 LBS
Shipping:
Calculated at checkout
Share

Product Description

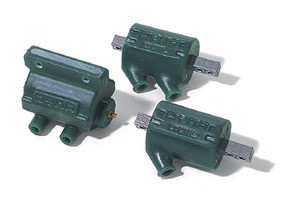

Dyna ignition coils are high tech, top quality coils designed for maximum performance and long life.  They produce spark voltages in excess of 30,000 volts and spark energies that can't be matched.  DYNA Coils are made to replace stock coils in form, fit, and function.  Choose from three configurations and five variations of resistance for different applications.  DYNA Coils work with point style ignitions, aftermarket electronic ignitions, and factory electronic ignitions.  Before selecting your coil please check the coil primary resistance requirements as specified by the manufacturer of your machine.  See below for installation instructions.


DYNA Ignition System Coil Requirements:

DYNA 4000 Pro Ignition :
  • Must use the DC9-1 or DC9-2 ignition coils.  The DYNA 4000 ignition system is designed for racing only and is matched to the characteristics of the DC9-1 coil for optimum energy production.
  • Also Recommended - DC7-1, DC8-1, DC10-1, DC3-1, DC6-1 ignition coils.  Use a coil with 5.0 ohms primary resistance for street use, 3.0 ohms primary resistance for racing applications.
Single Plug Head, stock ignitions:
  • Single Fire - Use two single output coils for the street or strip
    • Recommended DC3-1 or DC10-1 ignition coil set
      • Good for most older Japanese twins using two single output ignition coils
  • Dual Fire - Use one dual output coil for the street or strip
    • Recommended DC6-1 ignition coil
      • Good for most older Japanese twins using a single dual output ignition coil
    • Recommended DC1-1 or DC8-1 ignition coil set
      • Good for most older Japanese 4 cylinders using two dual output ignition coils
Dual Plug Head:
  • Single Fire - Use two dual output coils for the street only
    • Recommended DC1-1, DC2-1, DC6-1 ignition coil set
  • Dual Fire - Use two dual output coils for the street or strip
    • Recommended DC1-1, DC2-1, DC6-1 ignition coil set
Dual Plug Head, single fire racing applications:
  • Use two DC2-1, 1.5 ohm ignition coils connected in series for each cylinder.  Since these coils are dual tower, one tower of each coil must be shorted to chassis ground.
DYNA S (non-Harley):
  • Recommended - DC1-1 ignition coil.  Use coil with 3.0 ohms primary resistance.



Please inquire with any questions if you are unsure of the appropriate ignition coil for use with your machine.  Installation instructions are available for download below.

Please note:  Dyna coil kits do not include plug wires.  Plug wire kits must be ordered separately.  Select your wire options now.
